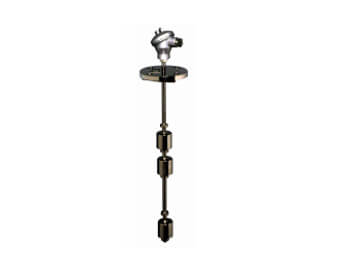

FP 4000 Level Switch

· Compact design for easy installation !
· Multi point detection by one unit !
· Wide selection of material from Stainless steel, PVC as well as High Temp.PVC lined.
· Ex-proof versions for hazardous area available !
· Approved products for High Pressure Gas Safety Act are available. Consult us for details.

Tải tài liệu

Đặc tính
Thông số kỹ thuật

Very small flow rate can be covered:	Min. 0 - 0.5 L/h [Water] can be measured.
Alarm output option available:	In addition to local indication type, alarm output version is also available.
Compact design:	Easy installation onto instrument panel.
Safety for high temperature and pressure:	All metallic material construction covers tough applications!

FP-4000

FP-4100

FP-4200

Outlook

Type

Compact design

Ex-d available

Singlefloat, Multi contact

Max.
Measuring length

3900mm

Op. pressure

Float

SUS316L:	0.66MPa
PVC:	0.13
HPVC:	0.13
PP:	0.2
PFA/NBR:	0.2

Float

SUS304/316/316L:	0.13MPa
PVC:	0.13
HPVC:	0.13
PP:	0.13
PFA/NBR:	0.13

Op. temperature

Float

SUS316L:

-5 to 100°C

PVC:

0 to 60°C

HPVC:

0 to 80°C

PP:

0 to 60°C

PFA/NBR:

0 to 100°C

Float

SUS316L:

-5 to 80°C

PVC:

0 to 60°C

HPVC:

0 to 80°C

PP:

0 to 60°C

PFA/NBR:

0 to 100°C

Minimum sp.
Gravity

Float

SUS316L:	0.6g/cm3
PVC:	0.75
HPVC:	0.75
PP:	1.0
PFA/NBR:	0.79

Float

SUS316L:	0.7g/cm3
PVC:	0.8
HPVC:	0.8
PP:	0.8
PFA/NBR:	0.9

Liquid
contact
material

Wetted parts:

SUS304, SUS316, SUS316L
PVC, HPVC, PP
PFA/SUS304

Float:

SUS316L
PVC, HPVC, PP
PFA/NBR

Process
connection

2" (50mm)flange. PFA: 80A (3B)

3" (80mm)flange
4" (100mm)flange for ETFE lined float (Material code 7 )

No. of alarm point

Independent: 3
Common return: 5

6
(11)

Contact switch

SPST Reed switch
DC50W

SPST Reed switch
DC10W

Repeatability

Within ±5mm

Protection code

Equiv. to IP65

Enclosure

Water tight
Intrinsically Safe(Ex ia IIC)
(Safety relay(EB3C) to be separately mounted)

Water tight
Flame Proof (Ex d IIB T6)
Intrinsically Safe (Ex ia IIC)
(Safety relay(EB3C) to be separately mounted)

FP 4000 Level Switch
