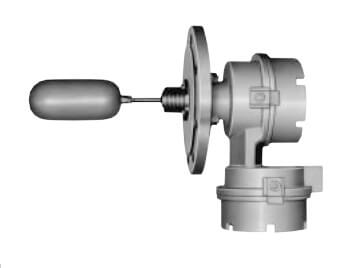

Float Type Level Switch FB 9000

FB-9000 is a series of horizontal mount type ,float level switch which employs bellows mechanical action to actuate the internal switch.
No magnet is used in float and FB-9000 is suitable for liquids which contain ferrous powders etc.
FB-9000 is used for level alarm detection and pump control etc.

Tải tài liệu

Đặc tính
Thông số kỹ thuật

Very small flow rate can be covered:	Min. 0 - 0.5 L/h [Water] can be measured.
Alarm output option available:	In addition to local indication type, alarm output version is also available.
Compact design:	Easy installation onto instrument panel.
Safety for high temperature and pressure:	All metallic material construction covers tough applications!

Measuring object

Liquids

Density range

Min. 0.6g/cm3

Press. range

Std. Max : 0.2MPa(Option Max : 2MPa)

Temp. range

-19 to +150°C

Process connection

4" flanges

Enclosure

Water proof: IP65
Flame proof: d2G4
Intrinsically Safe: i3nG5 ( Safety relay tobe used )

Alarm contacts

Number and construction : Std. 1 × SPDT
Type of switch : Std. Microswitch AC250V, 5A

Material construction

Float, liquid contacts :

SUS304, SUS316, SUS316L

Bellows :

SUS316L

Flange :

SUS304, SUS316, SUS316L

Housing :

AC2A
