| Type |
Non-explosionproof type
Electrode and transmitter
integrated type
CA-1XXXW |
Intrinsically safe type
Electrode and transmitter
separated type
CA-1XXXS |

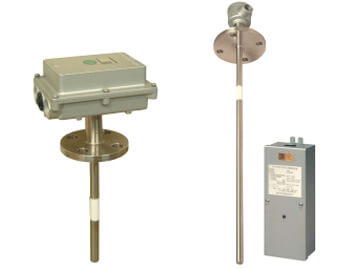

| Appearance |
 |
 |
| Measuring object |
| Liquid: |
|
Level: |
Liquid of which dielectric constant is more than 2, and which is conductive or non conductive |
|
Two liquids interface: |
Difference of the dielectric constants to be more than 10 times
Dielectric constant of lower liquid should be larger than upper liquid, and the thickness of upper liquid shoud be constant. |
| Powder or solids: |
Study about the use condition is needed.
(Please consult us.) |
|
| Op. temperature |
-10 to 80°C Bare and PFA covered(PTFE insulator), without fin
80 to 180°C Bare and PFA covered(PTFE insulator), with fin
180 to 300°C Bare (matallic)(Ceramic insulator), with fin |
| Op. pressure |
Max. 1MPa |
| Material |
| Earthed and detecting electrodes: |
SUS304 (Option: SUS316,SUS316L) |
| Insulator: |
PTFE (Option: Ceramics) |
| Seal: |
FKM (Option: NBR, VMQ, Karletz) |
| Flange: |
SUS304 (Option: SUS316, SUS316L) |
|
| Process connection |
1 B, JIS 10 K FF Flange |
| Output |
SPDT Relay contact |
| Power supply |
95 to 115 V AC or
190 to 230 V AC, 50/60 Hz |
100 V AC or 200 V AC, 50/60 Hz |
| Consumption |
6 VA |
| Construction |
Equiv. to IP 54 |
TIIS i3aG4 |
