K-740 SERIES

K-740 is the type with a micro switch alarm contact added on the K-200 which is the direct indication type sight glass with magnet cou-pling mechanism.
This type is used for flow cut-off alarming in addition to flow monitor- ing.

Tải tài liệu

Thông số kỹ thuật

Basic Code	K-740
Type	Flapper, Magnetic coupling, Pointer indication, Alarm contact

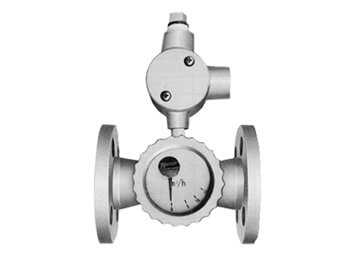

External view
Measuring fluid	Liquids (Not suitable for liquid with solids)
Flow range	Max. 200 to 300m³/h(Water) Max. 0.6 to 2m³/h(Water)
Fluid pressure	Max. 0.5MPa 65A to 300A Max. 0.7MPa 50A or smaller
Fluid temperature	Max. 80°C for NBR Gasket Max.100°C for FPM Gasket
Process connection	15A to 300A JIS10K Flange (Option: JIS5K, ANSI Class flange)
Standard material	Body:FC200, SCS13, SCS14 Nozzle:SUS304, SUS316 Shaft:SUS304, SUS316 Flapper:SUS304, SUS316 Window:Glass O ring:NBR(FPM)
Option	Alarm contact: Microswitch(SPDT) Intrinsiclly safe: Ex ia llC T6 Safety relay(EB3C) to be separately installed
