K-500 SERIES

K-500 is a direct see-through type sight glass.
Quality of liquid flow, such as color, status of introduction of foreign particles, can be observed through window glass. Besides normal metallic material, glass lined products are also available to cover corrosive liquids.

Basic Code

K-500

Type

Direct see through

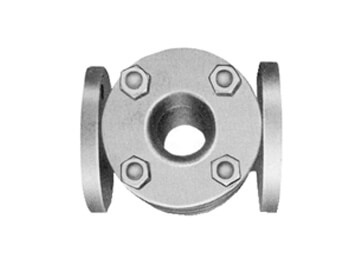

External view

Measuring fluid

Liquids

Flow range



Fluid pressure



Fluid temperature

Max. 80°C for NBR Gasket
Max.120°C for FPM Gasket
Max.150°C for PTFE Gasket
Max. 110°C for Glass Lined Material

Process connection

15A to 150A JIS10K Flange
(Option: JIS5K, ANSI Class flange)
RC1/2, 3/4, 1 Screws

Standard material

Body: FC200, SCS13, SCS14
Glass holder:
SS400, SUS316
Shaft:SUS304, SUS316
Flapper:SUS304, SUS316
Window:Temperd Glass
O ring:NBR(FPM, PTFE)

Option

Glass lined
