K-400 SERIES

K-400 is a direct see-through type sight glass with internal flapper.
In addition to normal observation of liquid colour and introduction of foreign particles in liquids, approximate flow rate of liquid can be monitored by the opening angle of flapper.

Basic Code

K-400

Type

Flapper

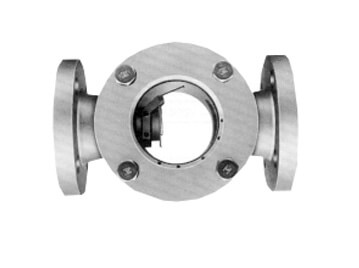

External view

Measuring fluid

Liquids

Flow range

Max. 100 to 150m3/h(Water)
Min. 0.3 to 3m
3/h(Water)

Fluid pressure

Max. 0.5MPa 65A or larger
Max. 0.7MPa 65A to 150A

Fluid temperature

Max. 80°C for NBR Gasket
Max.120°C for FPM Gasket
Max.150°C for PTFE Gasket

Process connection

15A to 150A JIS10K Flange
(Option: JIS5K, ANSI Class flange)
RC1/2, 3/4, 1 Screws

Standard material

Body:FC200, SCS13, SCS14
Nozzle:SUS304, SUS316
Shaft:SUS304, SUS316
Flapper:SUS304, SUS316
Window:Glass
O ring:NBR(FPM)

Option

Scale plate
