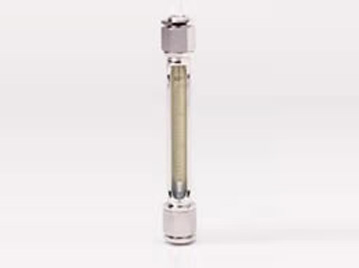

Direct mounting on the process piping (general purpose)
| Measuring fluid |
Liquids and gases |
Measuring
range |
Air |
Min. 80 to 800 mL/min(nor).
Max. 6 to 60 L/min(nor). |
• Air at 0ºC, 0 MPa (1 atm)
• When selecting a flow range, see the standard flow rate table.
• When the fluid pressure is other than 0 MPa, see Index & Quick Reference for P Series Purgemeters (TG-S0001). |
| Water |
Min. 5 to 50 mL/min.
Max. 0.2 to 2 L/min. |
| Range ability |
10 : 1 |
- |
| Indication accuracy |
±3 %F.S. |
- |
| Fluid pressure |
Max. 0.8 MPa |
- |
| Fluid temperature |
Max. 80ºC (120ºC) |
- |
| Material |
Wetted part |
SUS304 |
SUS316 available |
| Tapered tube |
Heat-resistant glass |
- |
| Packing |
NBR(max.80°C) |
FPM(max.120°C),
CR(max.80°C),
EPDM(max.80°C) |
| Protection tube |
C2700T |
SUS304 available |
| Connection |
Standard |
Rc1/4 |
Rc1/8, 3/8, 1/2
NPT1/8, 1/4, 3/8, 1/2
JIS10KFF available |
| Mounting |
Standard |
Piping mounting |
See ordering information for details.
Panel mounting with attached metal fittings and flange mounting can be specified. |
| Mass (standard type) |
0.4 kg |
