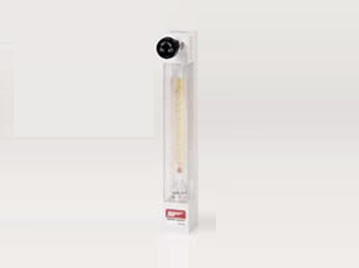

Built-in use for general-purpose equipment (small flow rate)
| Measuring fluid |
Gases
Liquids |
| Measuring range |
Air |
Min. 5 to 50 mL/min (nor)
Max. 6 to 60 L/min (nor) |
| Water |
Min. 5 to 50 mL/min
Max. 0.2 to 2 L/min |
・ When selecting a flow range, refer to "Index & Quick Reference for P Series Purgemeters" (TG-S0001).
・ When selecting a flow range,refer to the standard flow rate table. |
| Range ability |
10 : 1 (10 : 2 for some models) |
| Indication accuracy |
±3% F.S. |
| Fluid pressure |
Max. 0.8 MPa |
| Fluid temperature |
Max. 120ºC (Depends on the gasket material) |
| Material |
Wetted part |
SUS304, SUS316 |
| Tapered tube |
Heat-resistant glass |
| Gasket |
Nitrile rubber (NBR) (Max. 80℃)
Chloroprene rubber (CR) (Max. 80ºC)
Fluoro rubber (Max. 120ºC)
Ethylene-propylene rubber (EPDM) (Max. 80℃)
・The maximum fl uid temperature for each gasket material
may vary depending on usage and ambient conditions. |
| Mounting bracket |
Aluminum |
| Cover |
Polycarbonate |
| Process Connection |
Rc : 1/4"(Standard), 1/8"
NPT : 1/4", 1/8" |
| Mounting |
Lock nut mount on the panel front (Standard)
Bezel mounting
Panel embedded mounting
With stand |
| Mass |
approx. 0.6Kg |
