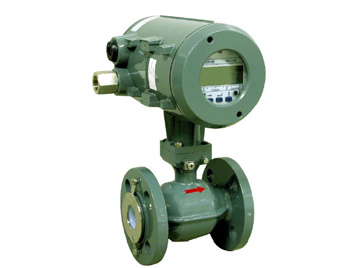

| Fluids |
Liquids with conductivity 5μS/cm or more. However, water must have 20μS /cm or more in conductivity. |
Measuring range
(fluid velocity) |
Max.: 0 to 763m3/h (0 to 12m/s)
Min.: 0 to 0.0849m3/h (0 to 0.3m/s) |
| Nominal size |
10, 15, 25, 50, 80, 100, 150mm |
| Fluid pressure |
Max. 4.0Mpa (10 to 80mm in size)
Max. 1.6Mpa (100 and 150mm in size) |
| Fluid temperature |
-20 to +140°C(The temperature of the explosion proof type depends on the atmosphere temperature and temperature class) |
Wet part
materials |
| Lining: |
PFA for 25 to 150mm, PTFE for 10 and 15mm in size |
| Electrodes: |
Hastelloy®C for 50 to 150mm, Hastelloy®B for 10,15 and 25mm in size |
| Earth ring: |
Equivalent to SUS316 as standard, Hastelloy®B, Hastelloy®C, Titanium, Tantalum or Platinum/iridium as an option |
|
Process
connection |
10A to 150A JIS 10K and 20K Flanges equivalent, ASME 150 lbs equivalent, DIN PN16 and 40 equivalent |
| Indication |
| LCD 2 lines with illumination |
| Line 1: |
8 digit numerical figures |
| Line 2: |
unit indication |
(Flow rate or total flow volume indication selectable. Or alternative indication of these two items automatically with interval. Bar graph indication is also available) |
| Output |
| Current output: |
4 to 20mA DC, 0 to 20mA DC |
| Pulse output: |
Open collector output |
| Status output: |
Open collector output |
|
Standard
functions |
Low cut off, Free measuring unit, Automatic zero adjustment, Bi-directional flow measurement, Double range measurement, Self-diagnosis, Memory save function, Testing, Magnetic pin data setting, Options |
| Accuracy |
| Pulse output: |
±0.5% of reading for 1m/s or more flow velocity
Flow velocity error±0.005m/s for less than ±1m/s flow velocity
|
| Current output: |
Additional error of ±0.05% of full scale to be added onto above pulse output accuracy. |
|
| Power supply |
2-wire system 14 to 36V DC |
Protection /
Explosion proof
class |
IP67（IEC 60529)
ATEX Explosion proof |
