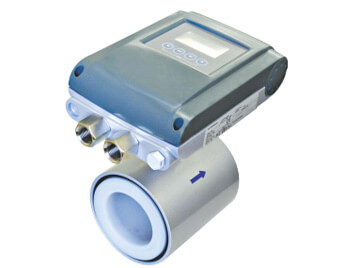

| Measuring fluid |
Liquids (10μS/cm or more, 20 μS/cm or more is required for water) |
| Excitation |
Square wave |
| Fluid temperature |
-40 to +120°C |
| Fluid pressure |
0Pa (abs) to 1.6MPa |
| Flow range |
Max. : 0 to 763 m3/h
Min. : 0 to 0.085 m3/h |
| Flow velocity |
Max. : 0 to 12m/s
Min. : 0 to 0.3m/s |
| Size |
10, 15, 25, 40, 50, 80, 100, 150 mm |
| Process connection |
Wafer type
JIS10K/20K, ANSI class 150/300, DIN PN16/40 |
| Materials of wet parts |
Liner: PFA
Electrode: Hastelloy®C22
Earth ring: Stainless steel SS316
Earth ring seal: Fluorocarbon rubber (only size 10 and 15mm) |
| Materials of body |
| Measuring tube: |
Stainless steel SS304 |
| Primary head housing: |
Cast iron / Sizes 10 to 40 mm
Carbon steel / Sizes 50 to 150 mm |
| Converter housing: |
Aluminum alloy |
|
| Painting / Color |
Polyurethane resin paint / Silver |
| Accuracy |
| Indication and Pulse output: |
±0.5% of reading : For velocity 1m/s
±0.4% of reading : For velocity < 1m/s
+ velocity error ± 0.001m/s |
| Current output: |
Additional error of ±0.01mA be added to the accuracy of indication or pulse output. |
|
| Indicator |
Dot matrix LCD With backlight
Changeover (2 screens), One to three lines are displayed at one screen.
Contents of indication; Flow rate, velocity, total flow, conductivity, and coil temperature |
| Output |
Current output: 4 to 20mA DC
Pulse output: Open collector pulse |
| Standard Functions |
• Customer’s free measuring unit setting function
• Automatic zero adjustment function
• Automatic zero adjustment function
• Bi-directional flow measurement function
• Double range measurement function
• Excitation current frequency switching function
• Self-diagnosis function
• Memory save function for power fail
• Testing function
• Push button setting function
• HART communication |
| Power Supply |
100 to 230V AC (85 to 253V AC), Approx. 8 VA AC
24V DC (11 to 31V), Approx. 4 W DC |
| Protection class |
IP66/67 (IEC 60529) |
