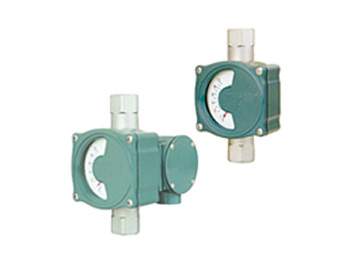

MA-900 Series Micro Flowmeter

MA-900 is a metal tube variable area flowmeter designed for the measurement of small flow of liquids and gases. MA-900 covers tough applications with high pressure and temperature which are not suitable for glass tube purgemeters. In addition to local indication version, an alarm output option is available.

Tải tài liệu

Đặc tính
Thông số kỹ thuật

Đặc tính

Very small flow rate can be covered

Min. 0 - 0.5 L/h [Water] can be measured.

Alarm output option available

In addition to local indication type, alarm output version is also available.

Compact design

Easy installation onto instrument panel

Safety for high temperature and pressure

All metallic material construction covers tough applications!

Thông số kỹ thuật

Model and function

MA-90X

Local indication only

MA-95X

Local indication + Alarm output

Measuring fluid

Liquids, Gases (Not suitable for slurries and steam)

Measuring range

For liquids (Water)
Max. 60 to 600L/h
Min. 0.1 to 0.5L/h

For gases (Air, 0°C 1,0MPa)
Max. 2.2 to 22m³/h(nor)
Min. 3 to 15L/h(nor)

Fluid viscosity

Size 3/8:

Max. 1.0 mPa•s

Size 1/2:

Max. 2.0 mPa•s

Size 3/4, 1:

Max. 5.0 mPa•s

Fluid presure

Max. 2.94 MPa (Option: Max. 19.6 MPa for high pressure)

Fluid temperature

Max. 100°C (Option: Max. 250°C)
Max. 85°C with alarm
In case of Glass tube insert type, allowable thermal shock is 80°C

Available material

SUS 316 or SCS14 (Options Hastelloy, Titanium etc.)

Process connection

Rc Thread 1/4, 3/8, 1/2, 3/4 and 1
10A, 15A, 20A, 25A JIS 10 K FF Flange
(OptionF NPT Thread , ANSI and DIN Flanges)

Idication accuracy

3%F.S. (5%F.S. for tapered glass tube insertion version)

Range ability

10 : 1 [10 : 2 for full scale of less than 3 L/h (water) or less than 100 L/h (nor) (air)]

Alarm point

1 point (Low or High), Open collector output
Setting accuracy: ±3.0%F.S.

Sản Phẩm Cùng Loại

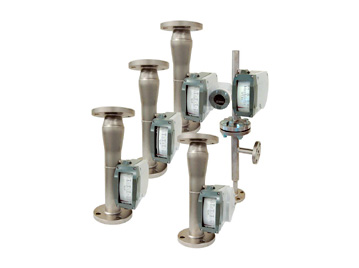

Metal Tube Type Variable Area Flowmeter AM7000 Series

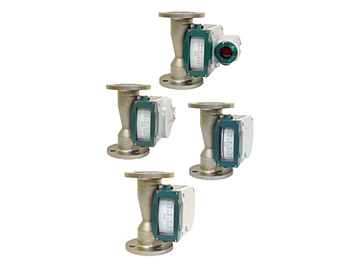

Metal Tube Type Variable Area Flowmeter AM9000 Series

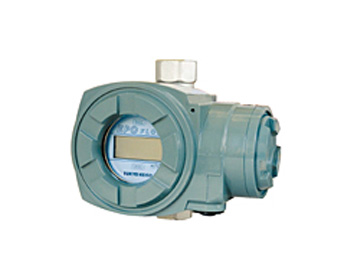

MA-920 Series Intelligent, Pure Electronics Micro Flowmeter

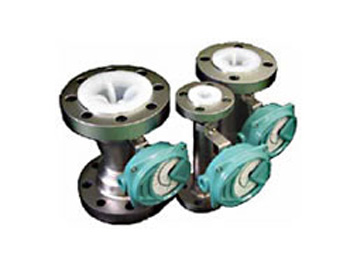

Metal Tube Type Variable Area Flowmeter NMX Series

MA-900 Series Micro Flowmeter

Đặc tính

Thông số kỹ thuật

Sản Phẩm Cùng Loại

Metal Tube Type Variable Area Flowmeter AM7000 Series

Metal Tube Type Variable Area Flowmeter AM9000 Series

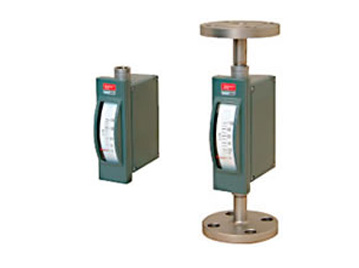

Micro Flowmeter M-900 Series

MA-920 Series Intelligent, Pure Electronics Micro Flowmeter

Metal Tube Type Variable Area Flowmeter NMX Series

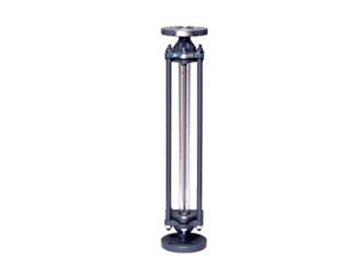

Glass Tube Flowmeter R-100 Series

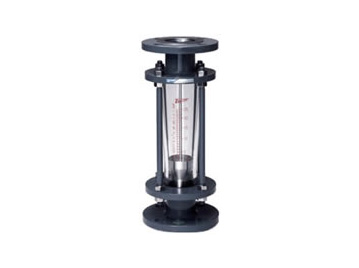

Glass Tube Flowmeter R-101-E Series
